lifting equipment


6





  Electric Wie Rope Hoist





Heavy Duty Snatch Block Shackle & Hook Type

snatch block

snatch block


  • SAFETY FACTOR: 4:1
  • SHACKLE (SB TYPE) OR HOOK (HB TYPE)
  • DROP FORGED WHEEL
TYPE S.W.L SHEAVE DIA SHACKLE HOOK B C WIRE ROPE SIZE  WEIGHT
A1 A2
SHACKLE HOOK TON mm kg
SB-07502 HB-07502 2 75 286 292 82 70 7~9 4
SB-11504 HB-11504 4 115 345 358 120 70 10~12 6.1
SB-15004 HB-15004 4 150 399 412 160 70 16~18 13.8
SB-15008 HB-15008 8 150 475 498 160 93 20~22 14.4
SB-20008 HB-20008 8 200 528 549 210 93 20~22 16
SB-20015 HB-20015 15 200 663 672 230 102 22~24 24
SB-25010 HB-25010 10 250 679 695 260 115 24~26 37.5
SB-25012 HB-25012 12 250 679 701 260 115 24~26 42
SB-30012 HB-30012 12 300 767 797 310 133 24~26 56
SB-35515 HB-35515 15 300 952 797 365 140 28~32 65
SB-35522 HB-35522 22 355 952 960 365 140 28~32 90
SB-45022 HB-45022 22 400 1019 1027 415 140 32~35 108
SB-40030 HB-40030 30 400 1126 1085 415 155 32~35 135
SB-50030 HB-50030 30 500 1256 1177 514 162 32~35 210

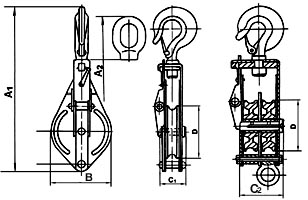

Single Sheave Snatch Block Hook & Eye Type

snatch block

snatch block


  • SAFETY FACTOR: 4:1
  • HOOK (HS TYPE) OR EYE (ES TYPE)
  • SINGLE SHEAVE
T Y P E S.W.L SHEAVE DIA MAIN DIMENSIONS (mm) WIRE ROPE SIZE WEIGHT
HOOK EYE TON D(mm) HOOK A1 EYE A2 B C1 MM kg
HS-075005 ES-075005 0.5 75 268 227 87 50 8 1.5
HS-100010 ES-100010 1 100 311.5 284.5 112 55.5 10 2.6
HS-125015 ES-125015 1.5 125 370 344 140 63.5 13 4.8
HS-150020 ES-150020 2 150 442.5 417 168 101 16 7.4
HS-180030 ES-180030 3 180 498 478 204 107 19 11.9
HS-200040 ES-200040 4 200 590.5 556 226 128 22 20.4
HS-250050 ES-250050 5 250 706.5 651 276 147 25 33
HS-300060 ES-300060 6 300 795 775 330 162 26 48
HS-350100 ES-350100 10 350 934 898 395 178 28 66

Double Sheave Snatch Block Hook & Eye Type

snatch block

snatch block ¡¡
  • SAFETY FACTOR: 4:1
  • HOOK (HD TYPE) OR EYE (ED TYPE)
  • DOUBLE SHEAVE
T Y P E S.W.L SHEAVE DIA  MAIN DIMENSIONS (mm) WIRE ROPE SIZE WEIGHT
HOOK EYE TON D(mm) HOOK A1 EYE A2 B C2 MM kg
HD-075005 ED-075005 0.5 75 268 227 87 77 8 2.8
HD-100010 ED-100010 1 100 311.5 284.5 112 88 10 4.3
HD-125015 ED-125015 1.5 125 370 344 140 100 13 7.8
HD-150020 ED-150020 2 150 442.5 417 168 146 16 12.2
HD-180030 ED-180030 3 180 498 478 204 157 19 18.5
HD-200040 ED-200040 4 200 590.5 556 226 188 22 31
HD-250050 ED-250050 5 250 706.5 651 276 220 25 49.8
HD-300060 ED-300060 6 300 795 775 330 238 26 72
HD-350100 ED-350100 10 350 934 898 395 260 28 102

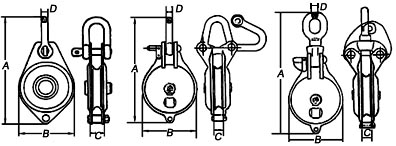

Marine Steel Block HM Type

snatch block

snatch block
TYPE SHEAVE DIA S.W.L (TON) MAIN DIMENSIONS (mm) FOR WIRE DIA (mm) WEIGHT
(kg)
A B C D
HM-075005 75 0.5 178 85 26 12 8 1.1
HM-100010 100 1 235 121 34 16 8 1.8
HM-125015 125 1.5 305 145 38 18 9 3.5
HM-150020 150 2 350 180 41 22 12 5.1
HM-200040 200 4 425 225 46 28 16 11.5
HM-250050 250 5 495 275 60 28 22 17
HM-075005-2 75 0.5 178 85 50 12 8 1.8
HM-100010-2 100 1 235 121 61 16 8 2.8
HM-125015-2 125 1.5 305 145 73 18 9 5.5
HM-150020-2 150 2 350 180 83 22 12 8.5
HM-200040-2 200 4 425 225 93 28 16 16.5
HM-250050-2 250 5 495 275 115 28 22 25.5

Marine Steel Block EM Type

snatch block

snatch block
TYPE SHEAVE DIA S.W.L(TON) MAIN DIMENSIONS (mm) FOR WIRE DIA (mm) WEIGHT
(kg)
A B C D
EM-075005 75 0.5 230 85 26 12 8 1.5
EM-100010 100 1 285 121 34 16 8 1.9
EM-125015 125 1.5 346 145 38 18 9 3.6
EM-150020 150 2 419 180 41 22 12 6.0
EM-200040 200 4 517 225 46 28 16 12.5
EM-250050 250 5 655 275 60 28 22 16
EM-075005-2 75 0.5 230 85 50 12 8 2.1
EM-100010-2 100 1 285 121 61 16 8 3.0
EM-125015-2 125 1.5 335 145 73 18 9 5.9
EM-150020-2 150 2 365 180 83 22 12 9.0
EM-200040-2 200 4 517 225 93 28 16 17.5
EM-250050-2 250 5 600 275 115 28 22 28.6

Malleable Iron Block H.D.G. MI Type

snatch block

snatch block
ITEM TYPE S.W.L.(TON) HOOK EYE B C FOR ROPE DIA (mm) WEIGHT
kg
A1 A2
m m
MI-075021 3"x1 0.2 203 164 57 39 12 0.9
MI-075042 3"x2 0.4 203 164 60 62 12 0.9
MI-100041 4"x1 0.4 262 232 76 45 16 1.2
MI-100092 4"x2 0.9 262 232 76 70 16 2.1
MI-100103 4"x3 1 262 232 76 83 16 2.6
MI-125051 5"x1 0.5 278 270 92 49 18 2.0
MI-125112 5"x2 1.1 280 272 92 74 18 3.0
MI-125153 5"x3 1.5 280 272 92 100 18 4.0
MI-150101 6"x1 1 346 340 112 60 24 3.5
MI-150202 6"x2 2 346 340 112 102 24 6.2
MI-175111 7"x1 1.1 388 35 62 64 28 5.1
MI-175232 7"x2 2.3 388 350 128 101 28 7.6
MI-200131 8"x1 1.3 415 390 163 68 30 7.6
MI-200262 8"x2 2.6 415 390 163 111 30 11.3
MI-225151 9"x1 1.5 450 420 180 75 32 11.4
MI-225302 9"x2 3 450 420 180 123 32 16.8
MI-250181 10"x1 1.8 492 460 200 75 34 13.4
MI-250302 10"x2 3 492 460 200 117 34 19.3

hand winch

HW-G TYPE

hand winch

HW-V TYPE

HAND WINCH, HW-G TYPE

ITEM
S.W.L.
Wire Rope Size (MM)
Wire Rope Length (M)
No. of layers of wire ropes
Net Weight
(kg)
HWG-150
150 Kg
 4
22
6
 8
HWA-300
300 Kg
5
40
6
16
HWA-500
500 Kg
6.8
25
4
17
HWA-1000
1000 Kg
9
25
4
38
HWA-2000
2000 Kg
13
30
3
60

HAND WINCH, HW-V TYPE

ITEM
S.W.L.
Wire Rope Size (MM)
Wire Rope Length (M)
No. of layers of wire ropes
Net Weight
(kg)
HWV-250
250 Kg
5
20
4
10
HWV-500
500 Kg
6.8
25
4
16
HWV-1000
1000 Kg
9
35
4
40
