G80 Chain Sling


6





  Electric Wie Rope Hoist

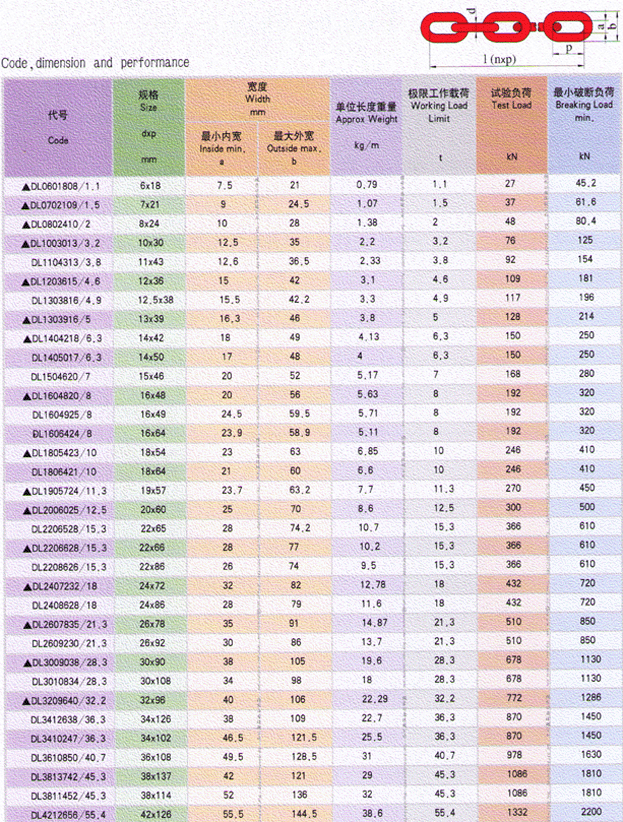

G80 Alloy Lifting Chain (T8)

Grade 80 alloy chain slings are often selected when operating under high temperature or rigged conditions that would abrade or destroy other types of slings. They are flexible, durable, long lasting, ductile, easy to inspect, collapsible for convenient storage, and will adhere securely to the contours of a load. The most advantageous feature of a chain sling is its ability to be repaired/ Nearly any damaged component discovered during an inspection can be repaired and restores to useful condition¡£
Load Estimation
In multi-leg slings, the angle between the legs is critical. The actual tension on each leg increases when the angle between the legs increases as shown in the diagram opposite. For this reason all general purpose chain slings are given a rating based upon use at 90 degree inc angle. The included angle between the legs should never exceed 120degree.
G80 Chain Sling

G80 Lifting Chain
