  Electric Wie Rope Hoist






Aluminium Body Wire Rope Pulling Hoist




The G&A wire rope pulling hoist is an extremely versatile and portable unit for pulling, lifting, lowering and securing loads, that is both easy and safe to operate. It comes in three sizes with capacities of 800kg, 1600kg and 3200kg, 5400kg for aluminium body and 800kg, 1600kg and 3200kg for steel body.

  • All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
  • Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
  • The hoist has low maintenance requirements and is easy to service.
  • Overload protection ensures high personal safety when in operation.
  • Specially built-in shear pins can be replaced without removing the load.



wire rope pulling hoist wire rope pulling hoist

MODEL
GA008A
GA016A
GA032A
Lifting Capacity (kg)
800
1600
3200
Rated Pulling Capacity (kg)
1250
2500
5000
Rope Advance per Full Stroke (mm)
60
60
40
Lever Pull at WLL (kg)
25
30
50
Rope Diameter (mm)
8.3
11
16
Standard Length of Wire Rope (m)
20
20
20
Net Weight Without Cable (kg)
7
14
23

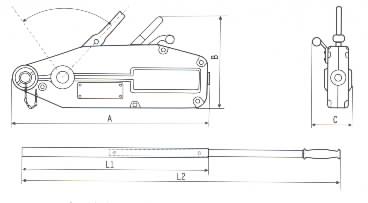

Max Overall Size (cm) A (Overall Length of Body)
426
545
660
B (Overall Height of Body)
235
280
325
C (Overall Width of Body)
64
97
116
L1(cm)
?N/A
80
80
L2(cm)
80
120
120

Steel Body Wire Rope Pulling Hoist

wire rope pulling hoist wire rope pulling hoist

MODEL
GA008S
GA016S
GA032S
Lifting Capacity (kg)
800
1600
3200
Rated Pulling Capacity (kg)
1250
2500
5000
Rope Advance per Full Stroke (mm)
>=52
>=55
>=28
Rated Forward Hand-power (N)
343
441
441
Rope Diameter (mm)
8.3
11
16
Standard Length of Wire Rope
20
20
20
Net Weight Without Cable (kg)
6
11
22
Max Overall Size (cm) A (Overall Length of Body)
440
540
670
B (Overall Width of Body)
63
130
290
C (Overall Height of Body)
265
290
360
L1(cm)
?N/A
80
80
L2(cm)
80
120
120
