Single Fhase & 3 Phase Electric Chain Hoist |
| |
|
|
Details of product:
1. Aluminium Body
2. Quality Chain is supplied by FEC Japan
3. Most tensile safety hook with break
4. Compact and high efficient motor with heat protection device
5.Choose double speed motor, big power
and diferent voltage are avaialbe.
6. Push botton is with 24V low voltage to grarantee safety and limit switch system
7. Choose presice process of high tension helix gear working system to keep low noise.
8. Enough chain bucket set.Space to suit different lifting length.
9. IP54 protection on electric hoist for dust and water potection.
10, Insulation Class: F
|
|
|
|
Model |
GA-SG (3 Phase, Single or Double Speed) |
Capacity (ton) |
0.2 |
0.32 |
0.4 |
0.5 |
0.63 |
1 |
Standard lift (m) |
3 |
3 |
3 |
3 |
3 |
3 |
Lifting Speed(m/min) |
20/5 |
12.5/3 |
10/2.5 |
8/2 |
6.3/1.5 |
4/1 |
Motor Power (kw) |
0.8/0.2 |
0.8/0.2 |
0.8/0.2 |
0.8/0.2 |
0.8/0.2 |
0.8/0.2 |
Number of chain strands |
1 |
1 |
1 |
1 |
1 |
2 |
Load chain diameter (mm) |
5 |
5 |
5 |
5 |
5 |
5 |
?
Model |
GA-SGS(1 Phase, Single Speed) |
Capacity (ton) |
0.2 |
0.32 |
0.4 |
0.5 |
0.63 |
1 |
Standard lift (m) |
3 |
3 |
3 |
3 |
3 |
3 |
Lifting Speed(m/min) |
6 |
6 |
3 |
3 |
4 |
2 |
Motor Power (kw) |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
Number of chain strands |
1 |
1 |
1 |
1 |
1 |
2 |
Load chain diameter (mm) |
5 |
5 |
5 |
5 |
5 |
5 |
|
|
| |
Model |
GA-SGI(1 Phase, Single Speed) |
Capacity (kgs) |
125 kgs |
250 kgs |
300 kgs |
Standard lift (m) |
3 |
3 |
3 |
Lifting Speed(m/min) |
10 |
10 |
5 |
Test Load (kn) |
1.375kN |
2.75kN |
5.5kN |
Number of Rope |
1 |
1 |
2 |
Wire Rope (mm) |
4 |
5 |
5 |
|
|
|
| |
|
|
|
Electric Chain Hoist, Hook Suspension Type |
| |
|
|
Details of product:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M4 /FEM: 1AM
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600v, 50HZ
10. Noise (single/ double speed): 81dB |
|
|
|
|
|
| |
|
|
|

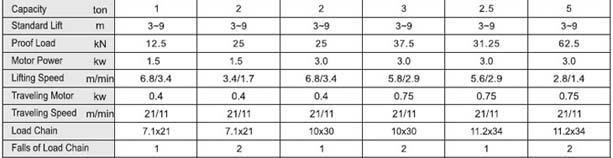

| Electric Chain Hoist with Manual Trolley |
| |
| |
|
|
|
| |
 |
|
| |
|
|
|

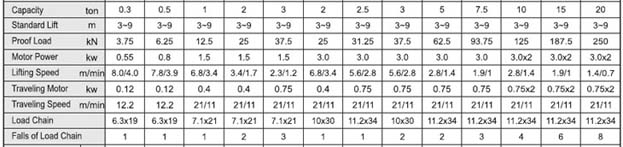

| Electric Chain Hoist with Motor Trolley |
| |
| |
|
|
|
| |
|
|
|
|
|
